Rotate Tube Roll Welding Manipulator Machine With 4meter Range

Rotate Tube Roll Welding Manipulator Machine With 4meter Range

Brief introduction:

Column welding manipulator is used to hold the welding torch instead of welder. It is a platform integrating all welding related components.

Video Link:

https://www.youtube.com/c/RonniewellAutomatedWeldingSolutionProvider

Welcome to follow us on following social media:

Facebook: https://www.facebook.com/weldingrotatorcn

LinkedIn: https://www.linkedin.com/in/automatedwelding

Description of column welding manipulator:

• Column welding manipulators are used to locate a weld head to a desired position for welding in a stable and secure manner.

• Once in position, the part is moved during welding to produce high quality welds.

• A column welding manipulator can be used on a wide variety of parts and part shapes.

• Welding is performed using GTAW, PAW, GMAW, FCAW, SAW or YAG Laser.

• In some GMAW, SAW and FCAW welding, the standard boom can be used as a linear welding axis, as these weld processes may not required precise welding motion.

• Column welding manipulators are a versatile and rugged solution to obtain up to 8m of lift and reach to duplicate the function of a highly skilled welder.

• Manual or powered mobile sub-based cars can be included for varying length weldments and procedures.

Benefits over welding the part manually:

• Able to achieve consistent weld results;

• Able to maintain weld head over weld joint in a stable position during the weld;

• Increases arc-on time and overall productivity;

• Provides ability to have multi-weld stations using only one weld head, increasing your return on investment;

• Reduced operator fatigue;

• Reduced consumable costs;

• Ability to have two welding process at one welding station by using both ends of the boom;

• These benefits greatly reduce the time to prepare a part for welding and the time to finish a part after welding. Also, rework time will be reduced and part scrap will be cut.

Column welding manipulator feature:

• Working with Column welding manipulator is the next step in automated welding.

• The column welding manipulators are initi ally designed to save labor costs especially at lager workpieces and when a column welding manipulator is been used in combinati on with a positi oner or rotator.

• Designed and robustly build to withstand rugged work environments.

• Smooth 360 degree lockable rotation.

• All vertical and horizontal guidings are precisely machined for smooth movement.

• Solid state inverter for variable speed of horizontal travel and travel carriage.

• Worm gearbox for vertical travel via AC motor, complete with brake for added safety.

• High tensile roller chain used for vertical travel with the addition of a counter balance system with the column that provides smooth, effortless travel.

• Anti-fall device and limit switches for all motions.

More technical parameter of column welding manipulator:

Competitive Advantage:

• Inverter and Main electric elements are Siemens/Schneider or equal brand.
• Motor is UK brand Invertek.
• VFD rotary speed control, improving the reliability of operation.
• With lubrication system.
• Accept testing before delivery.
• Accept special design and custom.

Delivery photo:

What Ronniewell can do for Ronniewell customers:
1. Give you high quality products.
2. Give you five-star price.
3. Give you suitable recommendation.
4. Give you good after-service.
5. Give you professional technical guide.
6. Warmly welcome you visit our factory.

Product name:
column welding manipulator, column boom column welding manipulator, CaB, column welding manipulator boom,automatic welding machine, column welding manipulator, cross beam column, welding manipulator;

rotary welding positioner

Column And Boom Manipulator

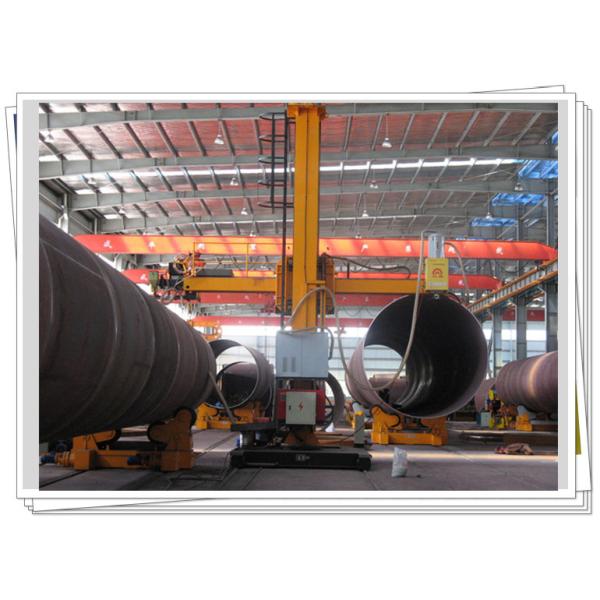

Rotate Tube Roll Welding Manipulator Machine With 4meter Range Images
